Kalikund Steel & Engineering Company (KSEC) is a largest manufacturer, distributor and supplier of AISI 4130 - Type 6BX Welding Neck Flanges 15,000 PSI. A weld neck flange is a type of flange that is manufactured to serve two purposes. API 6A Type 6BX Welding Neck Flanges 15K PSI supplier. While one is used with pipes, the other type is used in process plant. AISI 4130 - Type 6BX Welding Neck Flanges 15,000 PSI is generally manufactured from a forging and are typically butt welded to a pipe. The AISI 4130 - Type 6BX Welding Neck Flanges 15,000 PSI as the name suggests, is used at pressures up to 15,000 PSI. Such flanges find their application in hostile environments that have extremely high temperature, pressure, for example, in the manufacturing of Choke & Kill manifolds including Control Panel, Mud manifolds, Cement manifolds, and mud / gas separator.
The common types of Weld Neck Flanges are plate, forged, threaded, and screwed. We ensure high quality products, so AISI 4130 - Type 6BX Welding Neck Flanges 15,000 PSI undergoes a number of tests for the following certifications: 100% Radiography Test Report, Raw Materials Certificate, Third Party Inspection Report, etc. API 6A Type 6BX Welding Neck Flanges 15,000 PSI Manufacturer. Due to its resistance to both low and high temperatures, this type of flange is widely used in industrial applications like deep water riser system, manifold equipments, debris / junk catcher manifold, UBD trailor package, well test equipments, pipe line end manifolds and many more. At Kalikund Steel & Engineering Company (KSEC) we get customer acclamation for our best services, hence delivering good customer experience.
Dimensions : API 6A Type 6BX Welding Neck Flanges 15,000 PSI.
Size : 1-13/16”, 2-1/16”, 2-9/16”, 3-1/16”, 4-1/16”, 5-1/8”.
Pressure :15K, 15,000 PSI.
Delivery Condition : Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL) : PSL 1, PSL 2, PSL 3.
Supplementary Requirement : NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
AISI 4130 | G41300 | 1.7218 | - | 25CrMo4 | JIS G4105 | BS 970 | - |
Grade | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr | AISI 4130 | 0.50 max | 0.28-0.33 | 0.15-0.25 | 0.40-0.60 | 0.15-0.35 | 97.3-98.22 | - | 0.025 MAX | 0.035 MAX | 0.80-1.10 |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
7.85g/cm3 | 1432 C | 460 MPa | 560 MPa | 21.50 % |
AISI 4130 Type 6BX Flanges 15,000 PSI
Alloy Steel 4130 Type 6BX Flanges 15,000 PSI
4130 Type 6BX Flanges 15,000 PSI

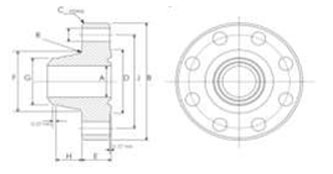

- | A | B | - | C | D | E | F | G | H | R | J | - | - | - | - | - | - |
NOMINAL SIZE & BORE OF FLANGES | MAX. BORE | OUTSIDE DIAMETER OF FLANGES | TOLERANCE | MAX. CHAMFER | DIAMETER OF RAISED FACE | TOTAL THICKNESS OF FLANGE | LARGE DIAMETER OF HUB | SMALL DIAMETER OF HUB | LENGTH OF HUB | RADIUS OF HUB | DIAMETER OF BOLT CIRLCE | NUMBER OF BOLTS | DIAMETER OF BOLTS | DIAMETER OG BOLT HOLES | BOLT HOLE TOLERANCE (SEE NOTES) | MINIMUM LENGTH OF STUD BOLT | RING NUMBER |
1-13/16” | 1.84 | 8.19 | +0.06 | 0.12 | 4.19 | 1.78 | 3.84 | 2.81 | 1.88 | 0.38 | 6.31 | 8 | 7/8” | 1.00 | +.06 | 5.50 | 151 |
2-1/16” | 2.09 | 8.75 | +0.06 | 0.12 | 4.50 | 2.00 | 4.38 | 3.25 | 2.12 | 0.38 | 6.88 | 8 | 7/8” | 1.00 | +.06 | 6.00 | 152 |
2-9/16” | 2.59 | 10.00 | +0.06 | 0.12 | 5.25 | 2.25 | 5.06 | 3.94 | 2.25 | 0.38 | 7.88 | 8 | 1” | 1.12 | +.06 | 6.75 | 153 |
3-1/16” | 3.09 | 11.31 | +0.06 | 0.12 | 6.06 | 2.53 | 6.06 | 4.81 | 2.50 | 0.38 | 9.06 | 8 | 1-1/8” | 1.25 | +.06 | 7.50 | 154 |
4-1/16” | 4.09 | 14.19 | +0.06 | 0.12 | 7.62 | 3.09 | 7.69 | 6.25 | 2.88 | 0.62 | 11.44 | 8 | 1-3/8” | 1.50 | +.06 | 9.25 | 155 |
5-1/8” | 5.16 | 16.50 | +0.06 | 0.12 | 8.88 | 3.88 | 9.62 | 7.88 | 3.22 | 0.62 | 13.50 | 12 | 1-1/2” | 1.62 | +.09 | 11.50 | 169 |
