AISI 4130 Type 6B Flanges 5,000 PSI

Alloy Steel 4130 Type 6B Flanges 5,000 PSI

4130 Type 6B Flanges 5,000 PSI
Kalikund Steel & Engineering Company (KSEC) is a proficient manufacturer, supplier and distributor of AISI 4130 - Type 6B Welding Neck Flanges 5,000 PSI. API 6A Type 6B Welding Neck Flanges 5000 PSI manufacturer. A weld neck flange is a type of flange that is manufactured in two designs – the regular type is used with pipes whereas the long type is used in process plant. The AISI 4130 – Type 6B Welding Neck Flanges 5,000 PSI is generally machined from a forging and are typically butt welded to a pipe. Such flanges find their application in hostile environments that have extremely high temperature, pressure, for example, in the manufacturing of Choke & Kill manifolds including Control Panel, Mud manifolds, Cement manifolds, and mud / gas separator.
The AISI 4130 – Type 6B Welding Neck Flanges 5,000 PSI as the name suggests, is successfully used at pressures up to 5,000 PSI. The most common types of Weld Neck Flanges are forged, threaded, screwed and plate. For ensuring high quality, AISI 4130 - Type 6B Welding Neck Flanges 5,000 PSI undergoes a number of tests for the following certifications: Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc. API 6A Type 6B Welding Neck Flanges 5000 PSI stockist. As it is resistant to both cryogenic and high temperatures, this type of flange is widely used in industrial applications like Subsea Wellhead, Well Head Equipments, Oil Exploration, Oil and gas drilling, High pressure jobs, rig project and many more. At Kalikund Steel & Engineering Company (KSEC) we are concerned about customer satisfaction and hence work towards manufacturing high quality products.
Dimensions : API 6A Type 6B Welding Neck 5,000 PSI.
Size : 2-1/16”, 2-9/16”, 3-1/8”, 4-1/16”, 5-1/8”.
Pressure :5K, 5,000 PSI
Delivery Condition : Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL) : PSL 1, PSL 2, PSL 3.
Supplementary Requirement : NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
AISI 4130 | G41300 | 1.7218 | - | 25CrMo4 | JIS G4105 | BS 970 | - |
Grade | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr | AISI 4130 | 0.50 max | 0.28-0.33 | 0.15-0.25 | 0.40-0.60 | 0.15-0.35 | 97.3-98.22 | - | 0.025 MAX | 0.035 MAX | 0.80-1.10 |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
7.85g/cm3 | 1432 C | 460 MPa | 560 MPa | 21.50 % |
AISI 4130 Type 6B Flanges 5,000 PSI
Alloy Steel 4130 Type 6B Flanges 5,000 PSI
4130 Type 6B Flanges 5,000 PSI

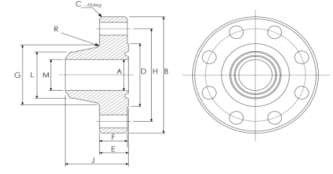

- | A | B | - | C | D | E | F | G | H | - | - | - | - | - | J | L | M | - |
NOMINAL SIZE & BORE OF FLANGES | MAX. BORE | OUTSIDE DIAMETER OF FLANGES | TOLERANCE | MAX. CHAMFER | DIAMETER OF RAISED FACE | TOTAL THICKNESS OF FLANGE | BASIC THICKNESS OF FLANGE | DIAMETER OF HUB | DIAMETER OF BOLT CIRLCE | NUMBER OF BOLTS | DIAMETER OF BOLTS | DIAMETER OF BOLT HOLES | BOLT HOLE TOLERANCE (SEE NOTES) | LENGTH OF BOLTS | TOTAL LENGTH OF WELD NECK LINE PIPE FLANGE | NECK DIAMETER OF WELD NECK LINE PIPE FLANGE | MAXIMUM BORE OF WELD NECK FLANGE | RING TYPE, RX |
2-1/16” | 2.09 | 8.50 | +0.06 | 0.12 | 4.88 | 1.81 | 1.50 | 4.12 | 6.50 | 8 | 7/8” | 1.00 | +0.06 | 6.00 | 4.31 | 2.38 | 1.72 | 24 |
2-9/16” | 2.59 | 9.62 | +0.06 | 0.12 | 5.38 | 1.94 | 1.62 | 4.88 | 7.50 | 8 | 1” | 1.12 | +0.06 | 6.50 | 4.44 | 2.88 | 2.16 | 27 |
3-1/8” | 3.22 | 10.50 | +0.06 | 0.12 | 6.62 | 2.19 | 1.88 | 5.25 | 8.00 | 8 | 1-1/8” | 1.25 | +0.06 | 7.25 | 4.94 | 3.50 | 2.65 | 35 |
4-1/16” | 4.28 | 12.25 | +0.06 | 0.12 | 7.62 | 2.44 | 2.12 | 6.38 | 9.50 | 8 | 1-1/4” | 1.38 | +0.06 | 8.00 | 5.19 | 4.50 | 3.47 | 39 |
5-1/8” | 5.16 | 14.75 | +0.06 | 0.12 | 9.00 | 3.19 | 2.88 | 7.75 | 11.50 | 8 | 1-1/2” | 1.62 | +0.06 | 10.00 | 6.44 | 5.56 | 4.34 | 44 |
