AISI 4130 Concentric Reducer

Alloy Steel 4130 Concentric Reducer

ANSI B16.9 4130 Concentric Reducer
Kalikund Steel & Engineering Company (KSEC) is a leading manufacturer, supplier, and distributor of AISI 4130 Concentric Reducers in India. A reducer is used to join two pipes of different diameters. Depending on the use, a reducer is manufactured in two different shapes – Concentric reducer and Eccentric reducer. A concentric reducer is cone-shaped and is used to join two pipes with a shift in diameters. This reducer can be used when there is a single as well as multiple diameter changes. Our AISI 4130 Concentric Reducer undergoes strict and rigorous testing and examination for ensuring the product safety and reliability. The tests may be include hardness test, mechanical test, positive material identification test, chemical test and a few more.
We manufacture AISI 4130 Concentric Reducer which are majorly used for high pressure applications like Drilling Equipments, Onshore offshore drilling, Rig Projects, deep water riser system, Manifold Equipments, Debris/ junk catcher manifold and many more such areas. The AISI 4130 Concentric Reducer comes with a standard pressure ratings of 7.5k-10.5k PSI. Because of its high temperature resistance this reducer is used in the manufacturing of Choke & Kill manifolds including Control Panel, Mud Manifolds, and Cement Manifolds, manufacturing of Mud / Gas Separators, Oil & Gas and Oil Exploration industries, production of Pipe Line End Terminations and Manifold Equipment’s. At Kalikund Steel & Engineering Company (KSEC), we keep a stock of AISI 4130 Concentric Reducers so that the customer can avoid delay in deliveries, hence winning customer acclamations.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1", 2", 3", 4", 5", 6", 8", 3.5" OD, 4.5" OD, 5.5" OD and as per client design
Type : Seamless
Thickness :Schedule 80, XS, 120, 160, XXS, higher thickness as per client requirement.
Pressure :7.5K, 10K, 15K, 22.5K and more as per client drawing and requirement.
Delivery Condition : Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL) : PSL 1, PSL 2, PSL 3.
Supplementary Requirement : NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
AISI 4130 | G41300 | 1.7218 | - | 25CrMo4 | JIS G4105 | BS 970 | - |
Grade | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr | AISI 4130 | 0.50 max | 0.28-0.33 | 0.15-0.25 | 0.40-0.60 | 0.15-0.35 | 97.3-98.22 | - | 0.025 MAX | 0.035 MAX | 0.80-1.10 |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
0.28 | 2580 | 460 MPa | 560 MPa | 20 % |
AISI 4130 Concentric Reducer
Alloy Steel 4130 Concentric Reducer
ANSI B16.9 4130 Concentric Reducer

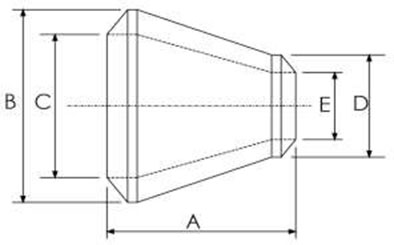

NB (“) (SCH XXS) | A | B | C | D | E | WEIGHT (KG) |
3” x 2” | 3.50 | 3.50 | 2.30 | 2.37 | 1.50 | 2.5 |
4” x 2” | 4.00 | 4.50 | 3.15 | 2.37 | 1.50 | 4.5 |
4” x 3” | 4.00 | 4.50 | 3.15 | 3.50 | 2.30 | 4.5 |
5” x 2” | 5.00 | 5.56 | 4.06 | 2.37 | 1.50 | 7.5 |
5” x 3” | 5.00 | 5.56 | 4.06 | 3.50 | 2.30 | 7.5 |
5” x 4” | 5.00 | 5.56 | 4.06 | 4.50 | 3.15 | 7.5 |
6” x 3” | 5.50 | 6.63 | 4.90 | 3.50 | 2.30 | 11 |
6” x 4” | 5.50 | 6.63 | 4.90 | 4.50 | 3.15 | 11 |
6” x 5” | 5.50 | 6.63 | 4.90 | 5.56 | 4.06 | 11 |
