AISI 4130 45 Deg 3D Double Backed Elbow

Alloy Steel 4130 45 Deg 3D Double Backed Elbow

ANSI B16.9 4130 45 Deg 3D Double Backed Elbow
Kalikund Steel & Engineering Company (KSEC) is a prominent manufacturer, supplier, and distributor of AISI 4130 45 Degree 3d Doubled Backed Elbow. We manufacture AISI 4130 45 Degree 3d Doubled Backed Elbow, and AISI 4130 90 Degree 3d Doubled Backed Elbow. We offer full ranges of fittings from 2” to 6” with standard pressure ratings of 5,000 PSI and 10,000 PSI. With its ability to survive in cryogenic and high temperature and pressure, AISI 4130 90 Degree 3d Doubled Backed Elbow is used in manufacturing of Choke & Kill manifolds including Control Panel, Mud Manifolds, and Cement Manifolds, manufacturing of Mud / Gas Separators, Oil & Gas and Oil Exploration industries, production of Pipe Line End Terminations and Manifold Equipment’s.
Using the AISI 4130 90 Degree 3d Doubled Backed Elbow does not require costly weld inspection. The end fittings are machined integrally. Our AISI 4130 Double Back 90 Deg Elbow is fully pressure tested and certified and it is mainly used is Chemical Plant and Petroleum Refinery Piping. It is used in areas like UBD Trailor Package, Well Test Equipments, Pipe Line end Manifolds, Pipe Line end Terminations, Mudline Suspension System, Subsea Wellhead, Onshore offshore drilling, Rig projects, and so on. Kalikund Steel & Engineering Company (KSEC) aims at providing high quality products to our customers hence working to deliver the best service.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1", 2", 3", 4", 5", 6", 8", 3.5" OD, 4.5" OD, 5.5" OD and as per client design
Type : Seamless
Thickness :Schedule 80, XS, 120, 160, XXS, higher thickness as per client requirement.
Pressure :7.5K, 10K, 15K, 22.5K and more as per client drawing and requirement.
Delivery Condition : Annealed, Normalized, Stress Relieved, Quenched & Tempered.
Product Specification Level (PSL) : PSL 1, PSL 2, PSL 3.
Supplementary Requirement : NACE MR0175 / MR0103 ISO 3183 / NACE TM0284 YS - MIN 85,000, UTS - 1,10,000 WITHSTANDING 15,000 PRESSURE.
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
AISI 4130 | G41300 | 1.7218 | - | 25CrMo4 | JIS G4105 | BS 970 | - |
Grade | Ni | C | Mo | Mn | Si | Fe | Cu | S | P | Cr | AISI 4130 | 0.50 max | 0.28-0.33 | 0.15-0.25 | 0.40-0.60 | 0.15-0.35 | 97.3-98.22 | - | 0.025 MAX | 0.035 MAX | 0.80-1.10 |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
0.28 | 2580 | 460 MPa | 560 MPa | 20 % |
AISI 4130 45 Deg 3D Double Backed Elbow
Alloy Steel 4130 45 Deg 3D Double Backed Elbow
ANSI B16.9 4130 45 Deg 3D Double Backed Elbow

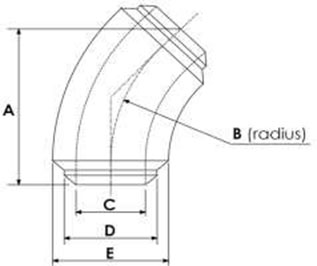

NB | A | B | C | D | E | WEIGHT (KG) |
2” XXS | 4.76 | 4.76 | 1.50 | 2.37 | 3.50 | 10 |
3” XXS | 6.73 | 6.73 | 2.30 | 3.50 | 4.33 | 20 |
4” XXS | 6.97 | 6.97 | 3.15 | 4.50 | 5.50 | 28 |
5” XXS | 8.22 | 8.22 | 4.06 | 5.56 | 6.60 | 45 |
6” XXS | 10.43 | 10.43 | 4.90 | 6.63 | 8.25 | 94 |
5.5” OD x 3.0” ID | 8.22 | 8.22 | 3.06 | 5.50 | 6.60 | 50 |
6.75 OD x 5.00” ID | 10.43 | 10.43 | 5.00 | 6.75 | 8.25 | 94 |
